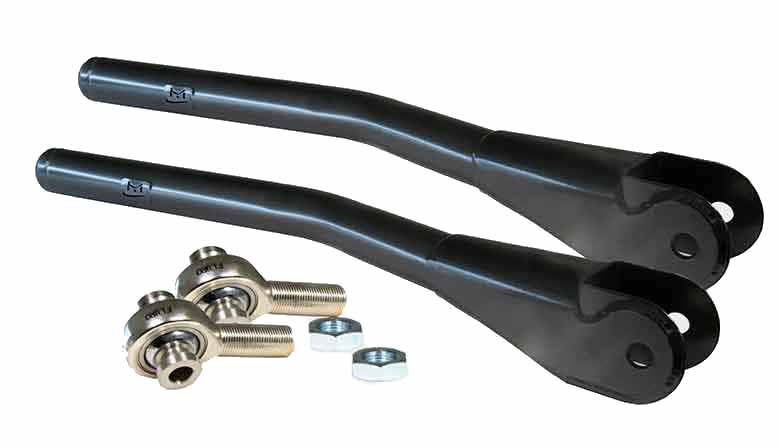

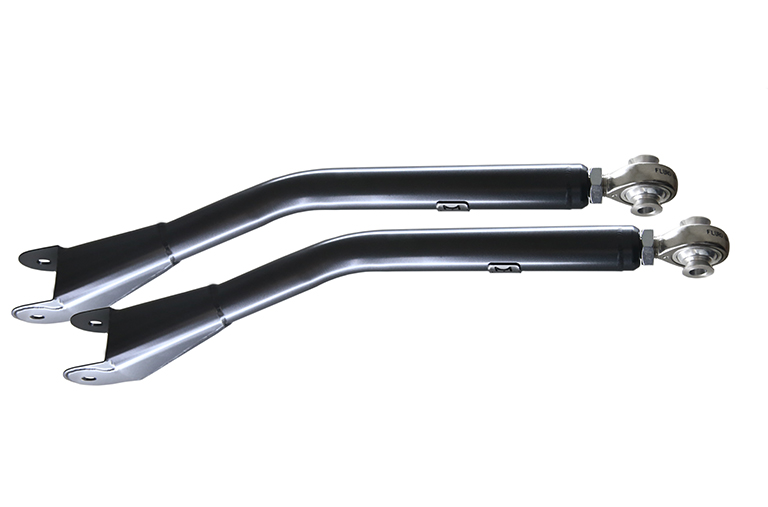

Motorsport Rear Trailing Arm Set
Technical Details
• Realignment of rear caster angle
• 4130 Chromoly Tubing; 2-step epoxy powdercoating
• Equipped with Fluro PTFE coated spherical bearing bushings
• Fine tuning of length to control squat characteristics

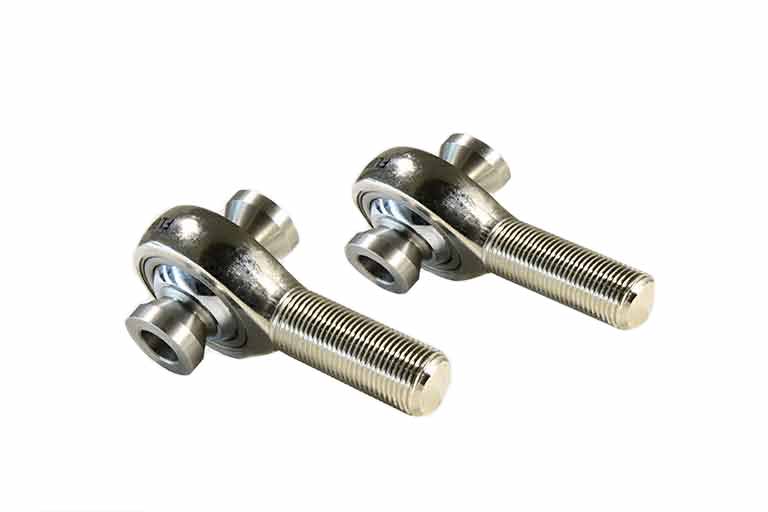

• Comes with standard M18 rod ends; M20 rod ends available on demand
• NOTE: No provisions for ABS sensors and brake line routing
Product Description
These trailing arms are adjustable in length to accommodate both OEM and increased 5mm length for gravel applications as well as a correction for cars lowered up to 75mm below stock. Rear mounting brackets are double layered to reinforce the mounting points as well as thicker gauge tubing for all the abuse you can throw at them. Due to the wide range of adjustment, these arms can be tailored to reduce rear squat under hard acceleration which is ideal for high horsepower drag racing cars to aid in improved 60’ times adding increased traction at launch.
Complementary Parts
MSISUB02-00-007 – Rear Lateral Links
MSISUB02-00-100 – Bushing Replacement Kit
This Part Fits On
Subaru, Impreza / WRX / STI, 1993 – 2007
Specifications
Assembly Weight 6.827 lbs (3.09692 kg)
Shipping Box 24” x 6” x 6” (61.0 x 15.2 x 15.2 cm)
